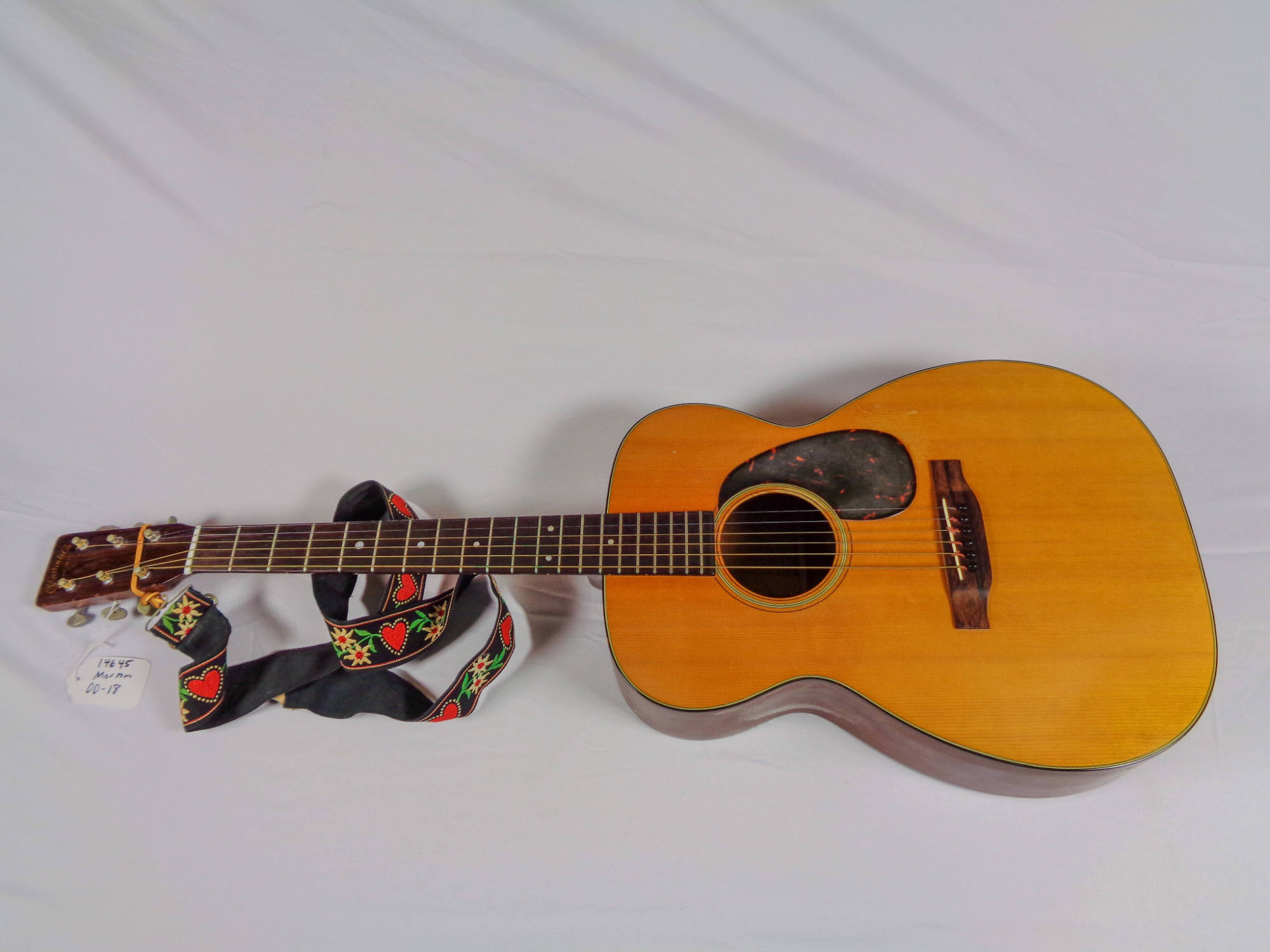

Guitar
Maker
C. F. Martin & Co.
Date1966
Place MadeNazareth, Pennsylvania, United States, North America
Model00-18
Serial No.208828
SignedBranded on back graft: [lettering curved downward at each end] C.F.MARTIN & Co / ―∙― / NAZARETH, PA. / MADE IN U.S.A.Gold and black decal on head: [lettering curved downward at each end] CFMartin&Co. [sic] / EST. 1833MarkingsBranded on neck block: 00-18 / 208828DescriptionThe 00-18 model was first introduced in in 1898. This version of the 00-18 has a belly bridge, which came into use in the early 1930’s; and a rosewood fingerboard which first appeared in 1935 and became the standard in 1940.
Stringing: six steel strings
Soundboard: two-piece Sitka spruce, medium grain broadening to wide toward the flanks
Back: two-piece book-matched Honduran mahogany; back stripe comprised of a single strip of black-dyed hardwood purfling.
Ribs: two-piece Honduran mahogany divided by imitation tortoise-shell celluloid end graft strip (slightly wider toward top than bottom)
Head: mahogany veneered with rosewood on front face
Neck: mahogany
Heel cap: rosewood
Binding: imitation tortoise-shell celluloid with 4-ply ivory, black, ivory, black celluloid purfling trim
Fingerboard: rosewood; 20 nickel-silver frets; single mother of pearl dots behind 5th, 7th, 9th, and 15th frets; two mother of pearl dots behind the 12th fret; ivory celluloid side dots behind 3rd, 5th, 7th, 9th, 12th, 15th, and 17th frets
Nut: White Plexiglass [see page 40 of Martin Guitars, A Technical Reference, Johnston, Boak and Longworth]
Bridge: Brazilian rosewood with curved lower edge; angled, cream Micarta saddle [not original]; black plastic bridge pins
Pegs: six chrome-plated steel worm-gear machine tuners by Grover with “butterbean” head surfaces and decoratively cut plate outlines
Endpin: black plastic
Rosette: wide band of 8-ply ivory and black celluloid strips with a different tan wood or plastic strip in the center, surrounded on each side with an individual strip of black celluloid, with natural wood in between
Pick guard: imitation tortoise-shell celluloid
Varnish: clear with minor craquelure
Linings: kerfed mahogany
Neck block: mahogany; chamfered corners
End block: mahogany; chamfered corners; mahogany graft at center, perpendicular to top and back
Top braces: spruce X-brace [no scalloping], the joint of main cross brace reinforced with off-white canvas; maple bridge plate
Back braces: spruce back graft; four spruce back braces, the two braces in the lower bouts with rounded edges, and wider and lower in height than the two braces in the upper boutsDimensionsTotal guitar length: 990 mm (39″)
Back length: 480 mm (18-7/8″)
Upper bout width: 282 mm (11-1/16″)
Waist width: 231 mm (9-1/16″)
Lower bout width: 368 mm (14-1/2″)
Rib height (including edging) at heel: 83 mm (3-1/4″)
Rib height, at waist: 95 mm (3-11/16″)
Rib height, at end block: 104 mm (4-1/16″)
Head length: 160 mm (6-9/32″)
Head width, top: 71 mm (2-3/4″)
Head width, bottom: 58.5 mm (2-5/16″)
Neck length (nut to ribs): 356 mm (14–1/16″)
Neck width, nut: 43 mm (1-11/16″)
Neck width, heel: 55 mm (2-3/16″)
Soundhole diameter: 96 mm (3-3/4”″)
Vibrating string length (nut to bridge edge): high E: 632 mm (24-17/8″); low E: 638 mm (25-9/16″)
Credit LineGift of Harris Haynes Estate, 2012
Object number14645
